Product summary

  • Technology FISH
  • Application Haematology
  • Areas of interest AML, MDS
  • Region 20q12 / 20q13.12
  • Label
  • Product Code LPH 020 (10 tests)
    LPH 020-S (5 tests)
  • Regulatory Status In vitro diagnostic. This product is intended to be used on Carnoy’s solution (3:1 methanol/acetic acid) fixed haematological samples. Disease information supported by the literature and is not a reflection of the intended purpose of this product.



Probe specification

  • 20q12, Red
  • 20q13.12, Green

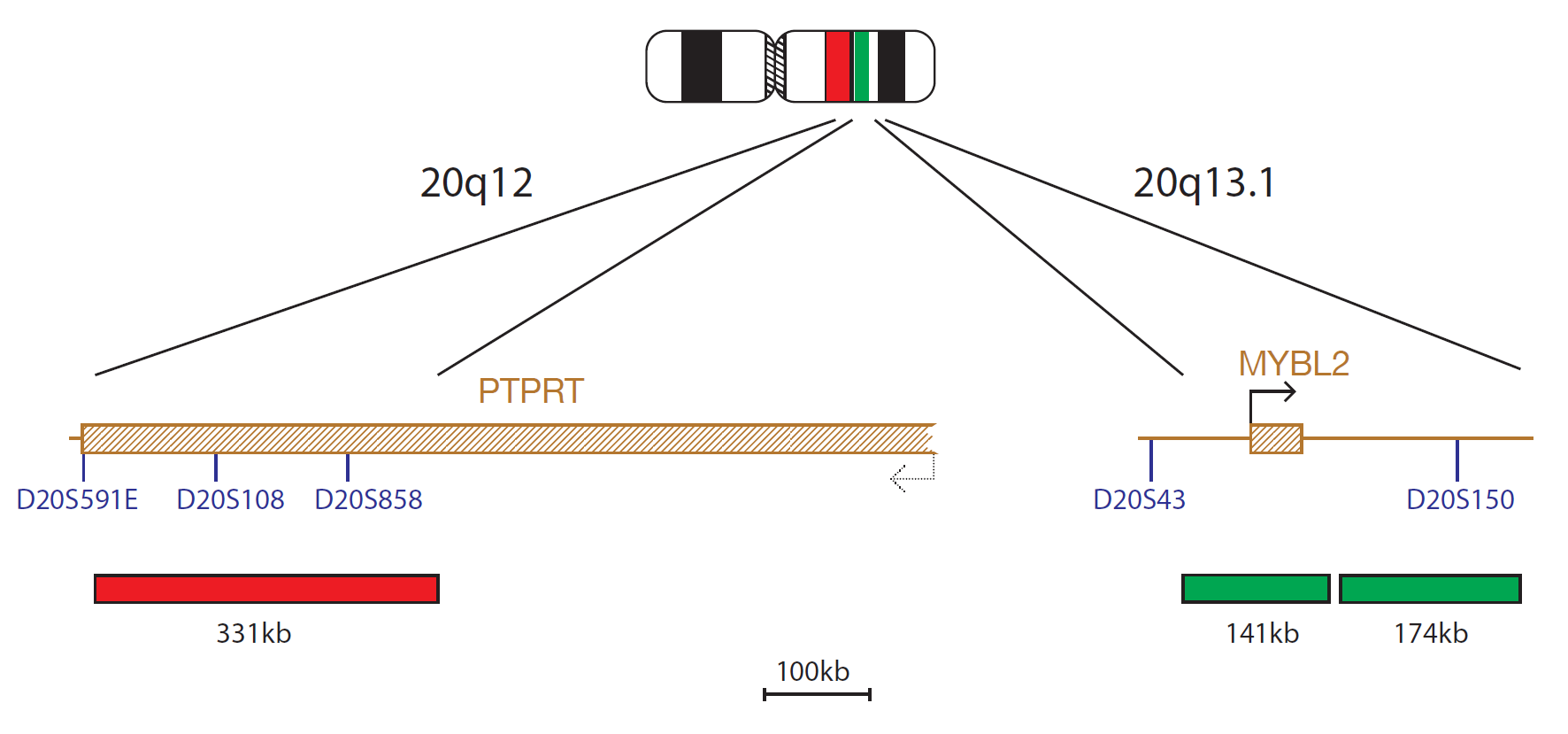

The 20q12 probe, labelled in red, covers a 331kb region within the PTPRT gene and includes the D20S108 marker. The 20q13.1 probes, labelled in green (141kb and 174kb), cover the MYBL2 gene and includes the D20S150 marker.


Probe information

Deletions of the long arm of chromosome 20 are a common chromosomal abnormality associated with myeloid malignancies, in particular myeloproliferative neoplasms (MPN), myelodysplastic syndromes (MDS) and acute myeloid leukaemia (AML)1.

Deletion of the long arm of chromosome 20 [del(20q)] is observed in 10% of patients with polycythemia vera (PV) and in other MPNs2. Additionally, it can be seen in 4% of MDS cases and in 1-2% of AML cases2. The prognosis for MDS where del(20q) is the sole abnormality is good; however, the presence of secondary abnormalities may be indicative of disease progression3.

FISH is particularly useful in confirming the presence and extent of the abnormality in poor cytogenetic sample preparations.

Potential target genes have been investigated in the region of overlap between the AML/MDS and MPD common deleted region at band 20q12. Five genes were expressed in both bone marrow and CD34+ cells. Of these genes, three were previously identified: L(3)MBTL1 regulates chromatin structure during mitosis; SRSF6 encodes a serine rich protein important to regulation of alternative splicing of mRNA; and MYBL2, a member of the MYB transcription factor family, is involved in cell cycle control2,4,5.

What our customers say


  1. Brězinová et al., 2005:160(2):188-192
  2. Bench et al., Oncogene 2000;19(34):3902-13
  3. Liu et al., Cancer Genet Cytogenet. 2006 Nov;171(1):9-16
  4. Li J et al., PNAS 2004;101:7341-6
  5. Wang et al., Genomics 1999;59:275-81

Recommended protocol for CytoCell haematology FISH

Select a protocol step to view:

Sample and slide preparation

1. Sample & Slide Prep Dark Blue
  • Spot the cell sample onto a glass microscope slide. Allow to dry.
  • Immerse the slide in 2x Saline Sodium Citrate (SSC) for 2 minutes at room temperature (RT) without agitation.
  • Dehydrate in an ethanol series (70%, 85% and 100%), each for 2 minutes at RT.
  • Allow to dry.
