Product summary

  • Panel size 12.4 kb
  • Targets 53 hotspot exons from 16 genes
  • Detects SNVs, Indels, ITDs
  • Product code 780145-48 (workflow + panel - 48 reactions) 770045-48 (panel only - 48 reactions)
  • Regulatory status For research use only; not for diagnostic procedures.

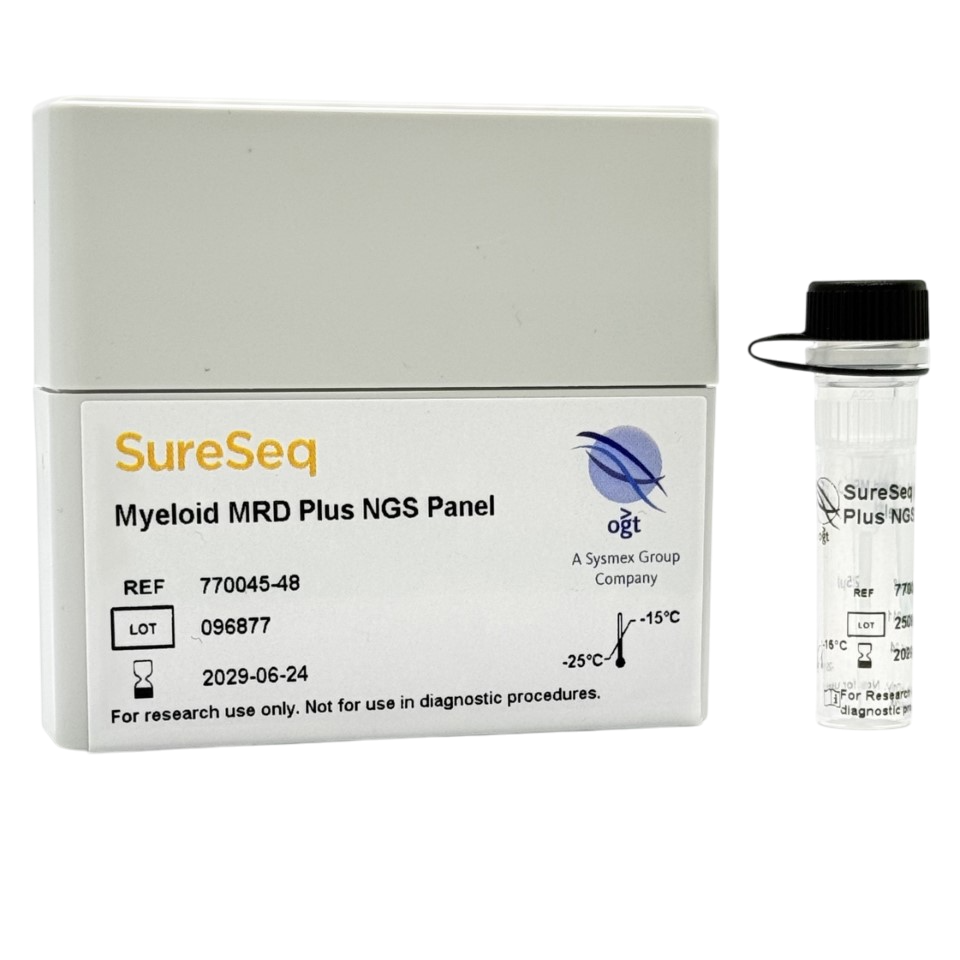

Sureseq Myeloid MRD Plus NGS Panel Product Packaging
Request a quote

Overview

The ultra-sensitive SureSeq™ Myeloid MRD Plus NGS Panel leverages OGT’s expertise in hybrid capture to provide a flexible NGS workflow for the detection of ultra-low frequency measurable residual disease (MRD)-associated biomarkers in acute myeloid leukemia (AML).

NGS Analysis Software

Interrogate 16 key AML-associated genes

Including longer, ultra-low frequency FLT3-ITDs over 300bp long, for the clearest picture of MRD status

Measurable Residual Disease

Confidently detect ultra-low frequency variants

As low as 0.01% VAF, including for key targets like NPM1

Protocol Support Yellow

User-friendly workflow backed by expert support

Maximize the efficiency of your MRD solution

Intelliseq Partnership

Easily dive into data analysis

Our complimentary NGS analysis software provides an out of the box bioinformatic pipeline

Product performance

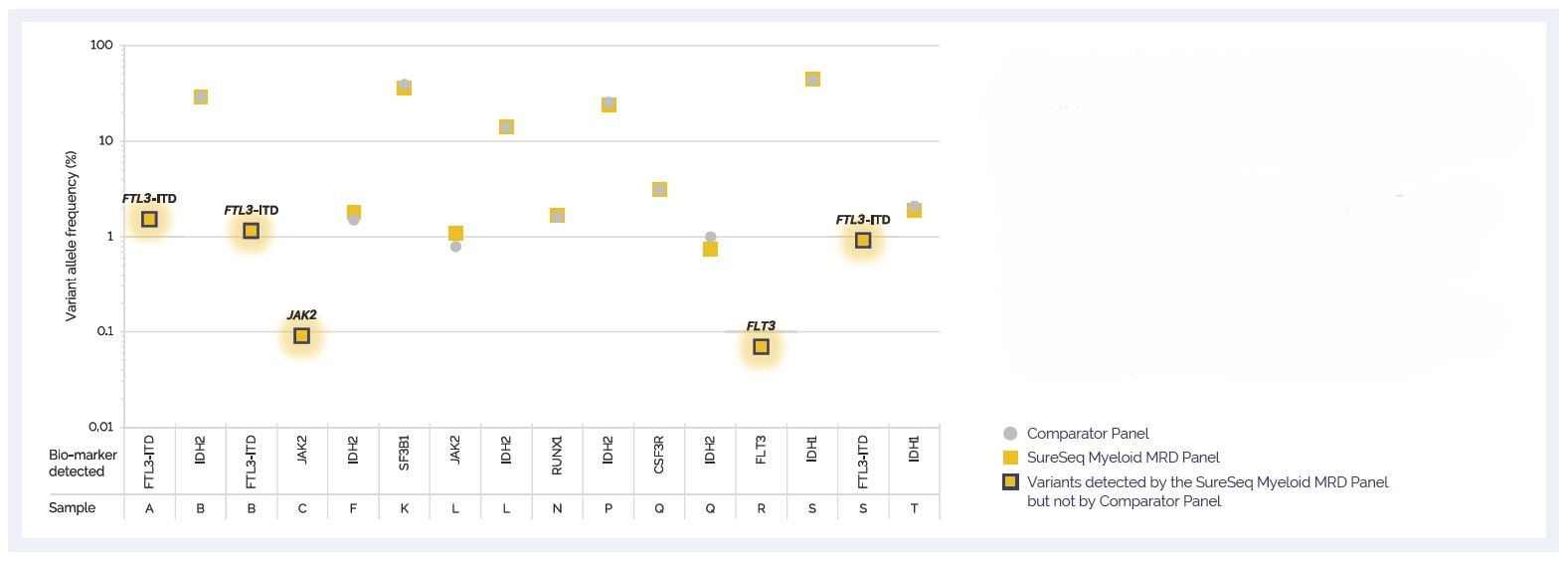

Discover more variants with ultra-low detection as low as 0.01% VAF

In a cohort of 16 AML clinical research samples with detected variants, OGT's SureSeq Myeloid MRD Panel:

  • Displayed 100% concordance with known variants from a comparator panel
  • Identified 5 previously undetected clinically-relevant variants

Interrogate challenging biomarkers, including large FLT3-ITDs

By leveraging our expertise in hybrid capture technology and sequence identification analysis, the SureSeq Myeloid MRD Plus NGS Panel can detect large FLT3-ITDs, in excess of 300bp, so you don’t miss actionable insights.

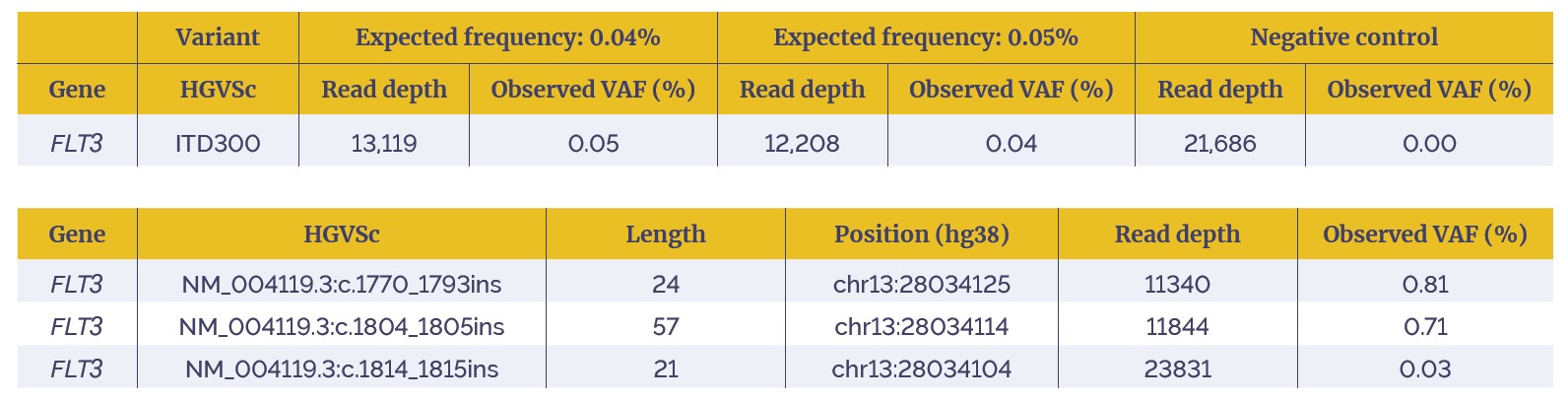

Data generated using the SureSeq Myeloid MRD NGS Panel in combination with the OGT’s Universal NGS Workflow Solution V2 and OGT’s Interpret NGS Analysis Software highlights the detection of a 300 bp FLT3-ITD as well as 3 examples of FLT3-ITD detection in orthogonally validated research samples.

User-friendly workflow for increased efficiency

Total hands-on time: 3hr 40 mins

  • Streamlined, all-liquid NGS preparation kit
  • UMI–enabled detection of low frequency variants
  • Pre-capture pooling to improve sample throughput and reduce hands-on time
  • Automation compatible
  • Customizable bioinformatics analysis software updated for MRD applications

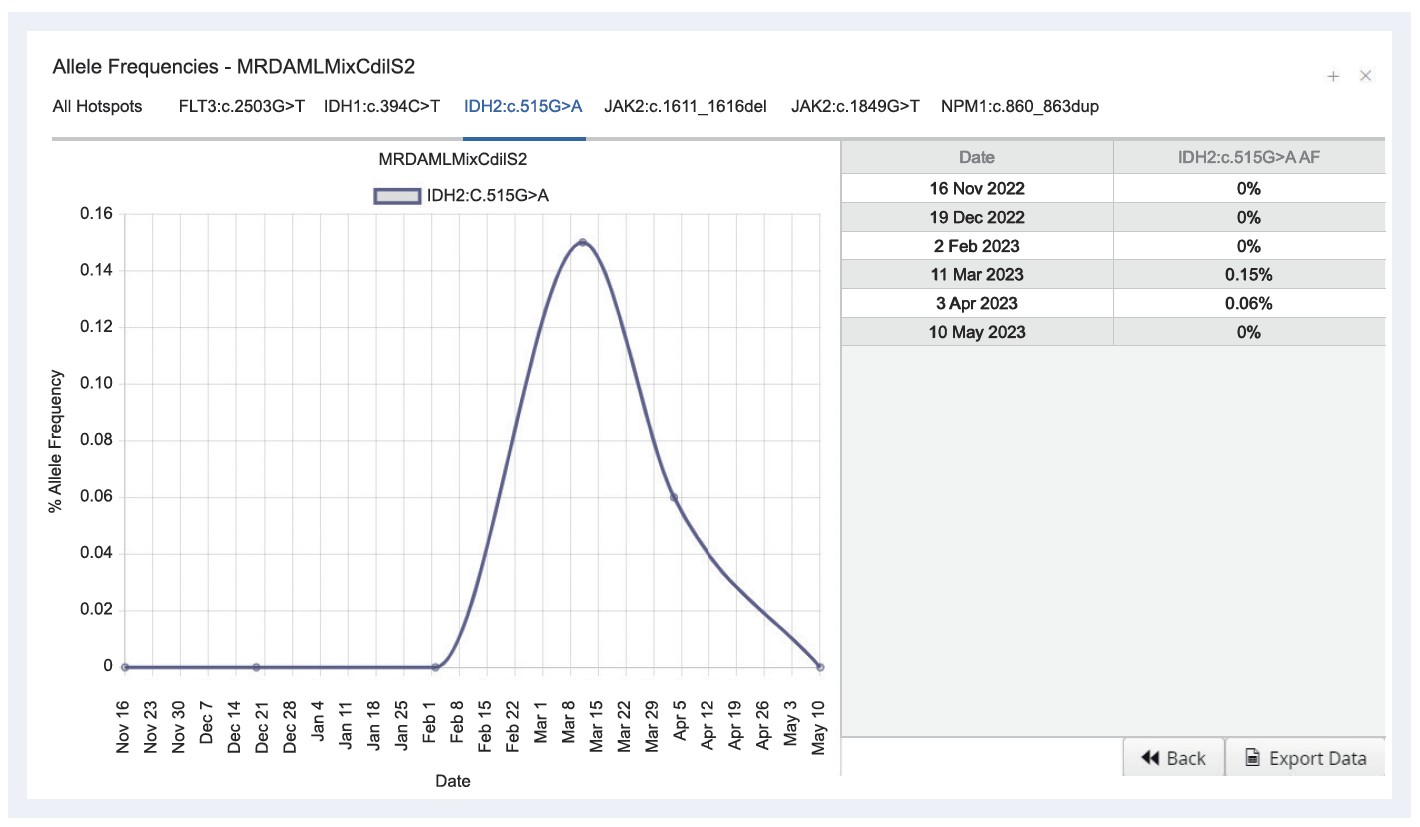

Easily visualize changes in longitudinal MRD sample studies

  • Monitor changing MRD dynamics over time from same subject
  • Reporting tool enables visualization of changing MRD dynamics over time - including SNVs, indels and ITDs
  • Customized reports including QC metrics of the sample and the variants identified
  • Simultaneously track multiple mutations over time, including new variants that emerge post-treatment

Gene targets

Select a gene to view exon coverage examples:

* Exon examples not yet available

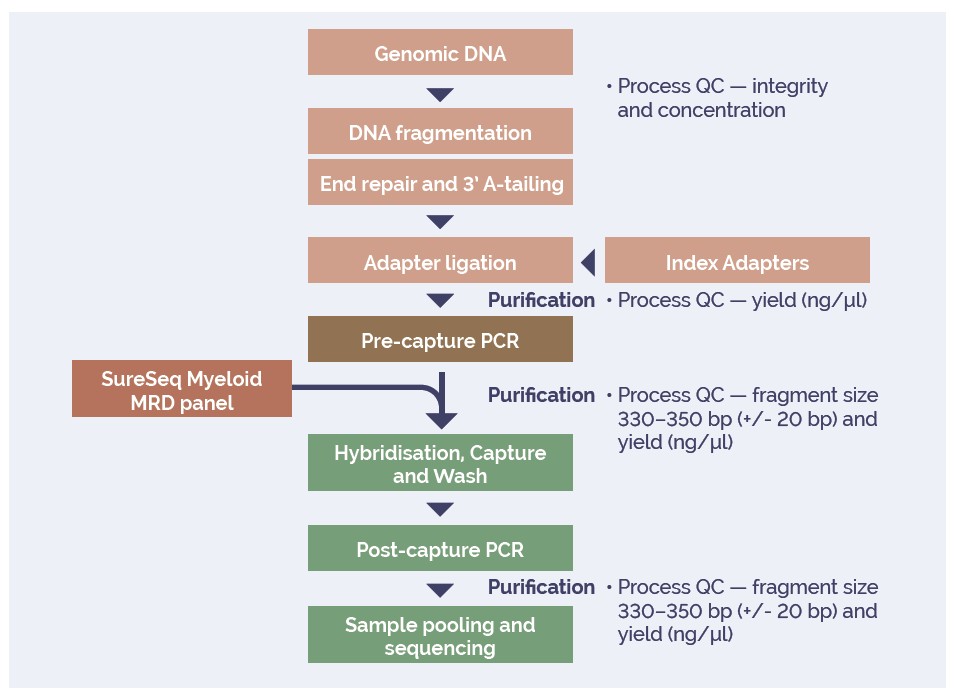

SureSeq Myeloid MRD Plus NGS Panel workflow

Content selection Image

Content selection

Step 1 of the SureSeq NGS workflow.
  • SureSeq Myeloid MRD Plus NGS Panel
